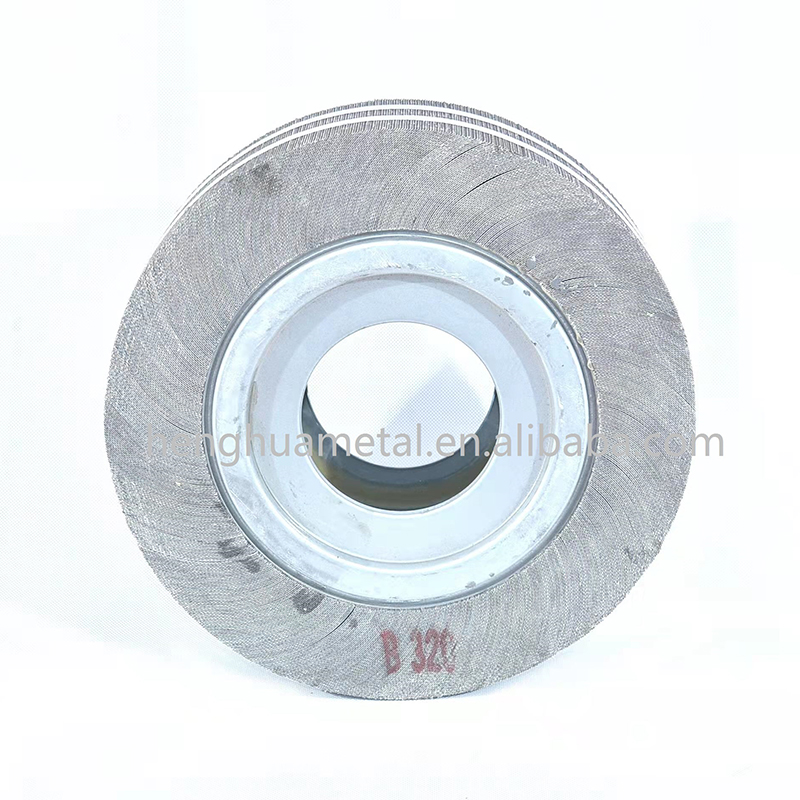

The straight-groove flap wheel is a high-performance coated abrasive product, named for its composition of hundreds or thousands of laminated abrasive cloth sheets. It uses high-quality alumina abrasive and a cloth base as the substrate, and employs a full resin bonding process to firmly fix the abrasive cloth sheets between upper and lower chucks. The chucks feature a straight-groove groove system and an L-shaped snap-fit structure to ensure the sheets remain stable and do not detach during high-speed rotation. The straight-groove design specifically refers to the groove form between the chuck and the sheets, suitable for various standard industrial polishing equipment.
Core Process and Structural Advantages
1. Precision Forming Process: Utilizing a production process combining stamping dies and automated binding technology, standardized production is achieved through a vertical die-cutting system, ensuring that the sheets of each flap wheel are evenly arranged and have a regular outer diameter. The full resin bonding process creates a high-strength bond between the abrasive cloth sheets and the chuck, achieving a yield rate of over 98%.
2. Straight-groove Chuck Structure
The straight-groove chuck system securely locks the abrasive blades in place through the engagement of upper and lower grooves and L-shaped locking slots. The fastening ring is bonded to the locking slots with adhesive, ensuring stable and reliable operation even at high speeds of thousands of revolutions per minute. Multiple sets of grooves and raised positioning structures on the inner side of the chuck further enhance installation stability.
3. Heat Dissipation and Wear-Resistant Design
For high-load continuous operation scenarios, some products can be equipped with a metal baffle heat dissipation system. The baffle diameter is slightly larger than the base body, effectively forming a heat dissipation channel and significantly reducing heat accumulation during high-speed operation. The high-chromium cast iron ring wear-resistant structure effectively prevents slippage during polishing, extending product lifespan.
Product Features
• High-efficiency cutting: The alumina abrasive is highly sharp, resulting in high grinding efficiency and saving significant time compared to manual grinding.
• Excellent self-sharpening: The abrasive wears off layer by layer during grinding, ensuring a constant supply of fresh abrasive grains to the workpiece, preventing clogging and burning.
• Flexible grinding: The cloth-based material provides excellent elasticity, allowing for polishing of irregular curved surfaces and adapting to complex workpiece surfaces.
• High stability: The all-resin bonding and chuck locking structure ensure safety during high-speed rotation.
• Wide range of applications: From coarse grinding to fine polishing, multiple grit sizes are available (60#-600#) to meet various surface treatment needs.
Application Areas
Metalworking: Weld grinding, burr removal, rust removal, and oxide layer removal for stainless steel, carbon steel, and aluminum alloys.
Automotive Manufacturing: Fine polishing of engine parts and body structural components.
Machinery Manufacturing: Surface finishing and polishing of heavy machinery parts and stamped parts.
Shipbuilding and Repair: Rust removal, old paint removal, and weld treatment for ship hull metal surfaces.
Wood and Furniture: Curved surface polishing of wood products, fine grinding of furniture surfaces, and paint treatment. Stone Processing: Stone edge trimming and surface polishing.
Applicable Equipment: Straight groove flap wheels require a dedicated clamping device and can be installed on automatic/manual polishing machines, grinding machines, angle grinders, etc. The recommended operating speed range is 3000-12000 rpm; the specific speed needs to be matched according to the product's outer diameter and grit size.
Usage Precautions:
1. Before use, check that the blades are intact and the chuck is not loose.
2. Keep the product dry to avoid moisture affecting bonding strength.
3. After use, clean any residual impurities between the blades to extend product life.
4. Regularly check the bearings and clamping device to ensure smooth operation.
5. Avoid stacking and compression during storage; maintain a well-ventilated and dry environment.
Why choose our straight groove flap wheels?
As a professional abrasive manufacturer, we offer:
• Complete specifications: Outer diameter 100-350mm, thickness 25-100mm, grit size 60#-600#, meeting various processing needs
• Customization available: Outer diameter, thickness, grit size, and substrate type can be customized according to customer requirements
• Stable quality: Using high-quality alumina abrasive and high-strength cloth backing, and a full resin bonding process ensures product consistency
• Ample production capacity: Automated production lines guarantee rapid delivery of large-volume orders
• Export experience: Familiar with international packaging and transportation requirements, ensuring safe arrival of products
